Type 1 Diabetes Registry Server Specification

Type 1 Diabetes Registry Application - Deployment Architecture

This document outlines a deployment architecture for Type 1 Diabetes Registry Application web-based application, suitable for Type 1 Diabetes Registry Application programs. The architecture emphasizes modular design, security, and flexibility, making it adaptable, it highlights core infrastructure components, software layers, integration points, and security measures essential for reliable and efficient application delivery.

The following sections detail the core components, deployment layers, infrastructure specifications, and additional extensions required for successful implementation.

1. Core Components
  • Web Application (Backend and Frontend)
  • PostgreSQL Database
  • OS- Ubuntu-22.04
  • Nginx/Apache HTTP Server (Optional for SSL termination)
  • Backup & Recovery System
  • Domain or Subdomain with SSL certificate
  • Email Server (SMTP server details)
2. Deployment Layers
Client Layer (End-Users)
  • Devices: Desktop Browsers, Mobile phones, Tablets
  • Access via: HTTPS (secured with SSL/TLS)
  • Usage: Data entry, reports, dashboards, tracker capture, custom app access
Application Layer (DHIS2 Server)
  • Web API (Tomcat)
  • Core Application (WAR)
  • Web Server (Optional, like Nginx or Apache for load balancing, reverse proxy, SSL)
Tech Stack
  • Tomcat 9+
  • Java 11/17
  • DHIS2 (Latest stable version or LTS)
Database Layer
  • PostgreSQL (13+, Can be V16)
    • Data partitions (for large datasets if needed)
    • Regular Backups (daily incremental, weekly full)

Hosting Option: On the same VM as or separate VM for better performance.

3. Infrastructure Components
  • App Server VM: 8 vCPU, 16-32 GB RAM, 200 GB Disk
  • DB Server VM: 4 vCPU, 8-16 GB RAM, 256 GB SSD Disk
  • Firewall: As per Network / guidelines
4. Security Layer
  • SSL/TLS encryption for all web traffic
  • User authentication: Two-factor authentication (2FA) - Email / Google Auth
  • Database security: Encrypted backups, secure PostgreSQL access
  • Firewall: Restrict access to specific IP ranges
5. Custom Needs/Extensions
Integrations
  • External systems (LMIS, EMR, Lab systems)
  • SMS/IVR Gateway (for community health workers)
  • Mobile apps (DHIS2 Tracker Android App or custom)
Backup & Monitoring
  • Automated backups: pg_dump + rsync to secure storage
  • Monitoring: As per guidelines
6. Deployment Diagram

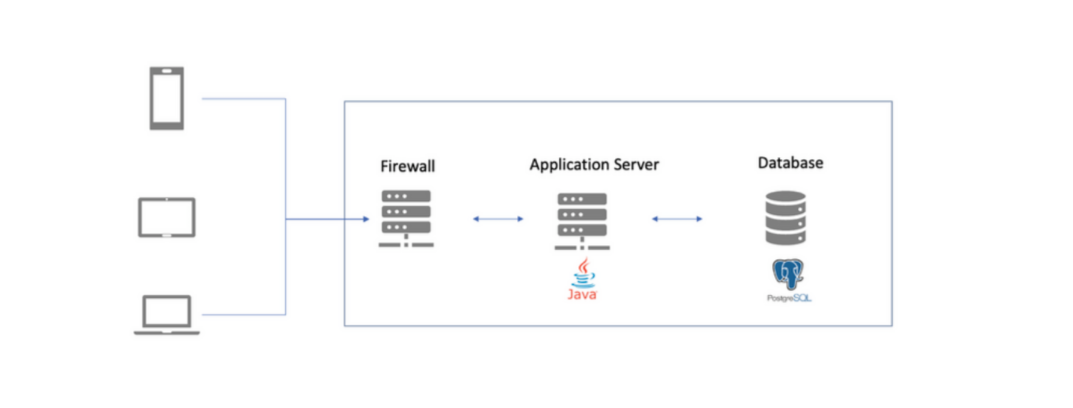

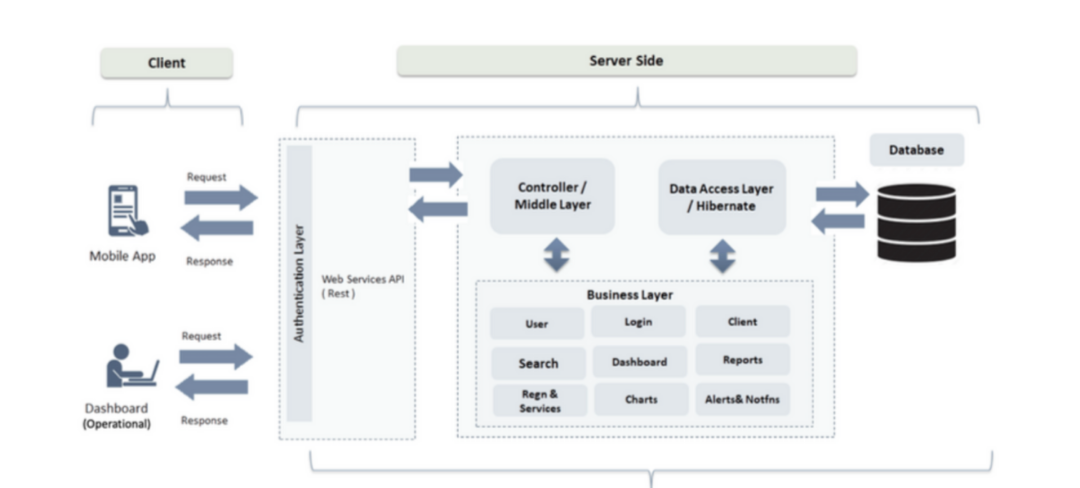

Technical Architecture Technical Architecture
7. Minimum Recommended Versions
Component Version
Java 11 or 17
PostgreSQL 13+ (could be V16)
Tomcat 9
